Coordinate short-rail or rail-and-attachment mounting for trapezoidal or corrugated metal roofs. The roof profile determines the fixing position and connection approach.
Send drawings or dimensioned photos to sales@noonsol.com.
Components to coordinate
The agreed quotation defines the included parts and quantities.
- Short rails or full rails as selected for the roof configuration
- Profile-compatible roof attachments and fasteners
- Module clamps and specified sealing components
Information for selection
- Roof wave/profile dimensions, sheet material and thickness
- Support spacing, attachment positions and waterproofing requirements
- Module size, frame height, array plan and local design criteria
Fit, installation and project checks

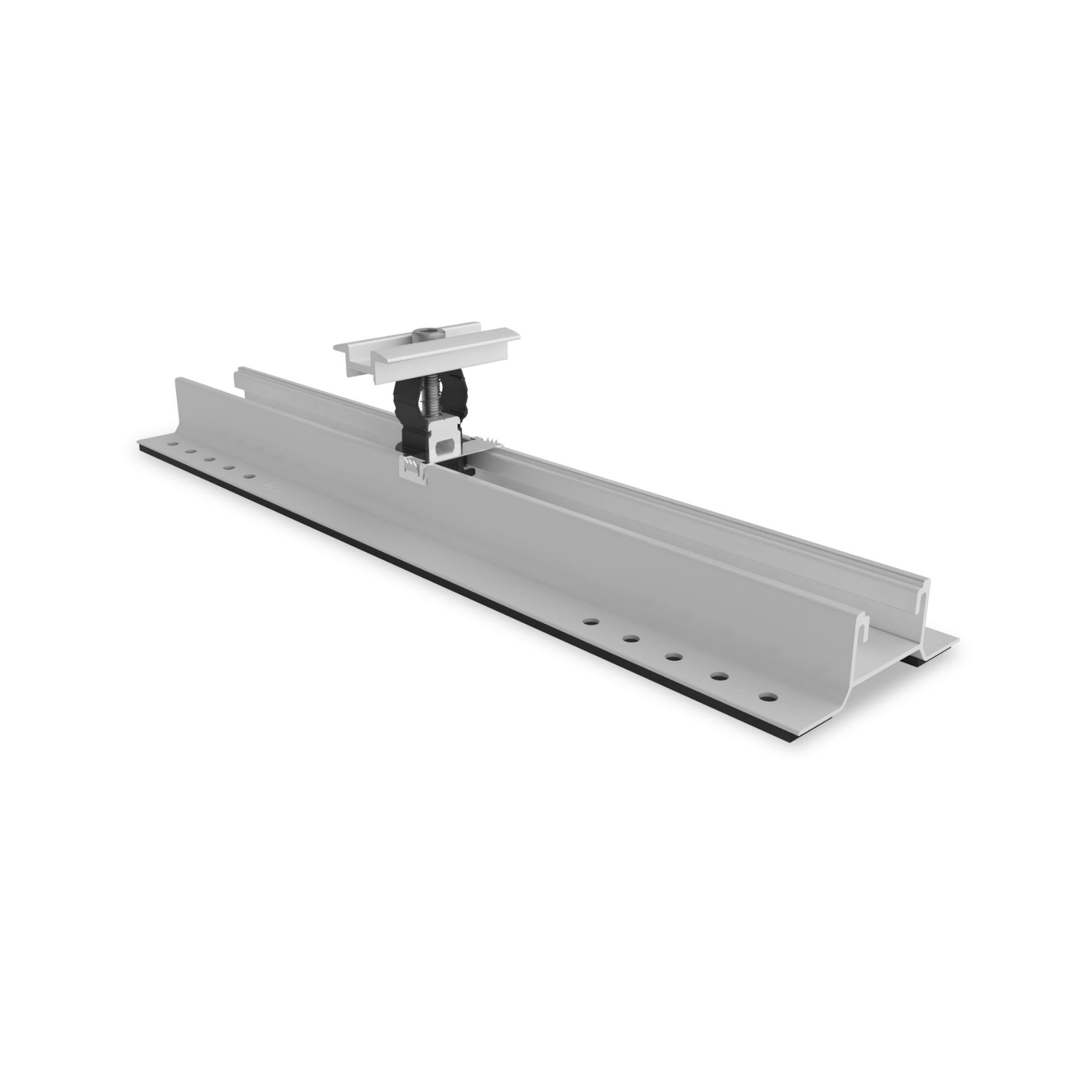

Trapezoidal and corrugated sheets have different geometries. Confirm whether the proposed fixing relies on the roof sheet, the supporting members, or another engineered interface. Fasteners, pull-out resistance and sealing details must be checked together. The reference photo shows a short rail and clamp rather than a complete roof kit.
Material grades, dimensions, finishes and installation details are confirmed for the selected configuration. Structural or electrical drawing support can be agreed through our engineering services.
Frequently asked questions
Can the same short rail be used on both roof types?
Suitability depends on the wave shape, fixing interface and structural checks. A product selected for one sheet profile may not suit the other.
Are screws and seals included?
The quotation specifies the fastener and sealing components, quantities and assembly details for the agreed roof configuration.
Request a project quotation
Send the selection information above, required quantities and delivery destination. We will confirm the proposed configuration, documentation and supply scope before you place an order.
