An anchored support approach for concrete roof solar arrays. Coordinate triangle supports, anchor connections and waterproofing details with the roof structure.
Send drawings or dimensioned photos to sales@noonsol.com.
Components to coordinate
The agreed quotation defines the included parts and quantities.
- Triangle supports, rails and compatible module clamps
- Base interfaces and specified anchor connections
- Connection fasteners and agreed waterproofing interface details
Information for selection
- Concrete roof drawings and available substrate information
- Waterproofing build-up and restrictions on roof penetrations
- Module layout, proposed tilt, support positions and local design criteria
Fit, installation and project checks

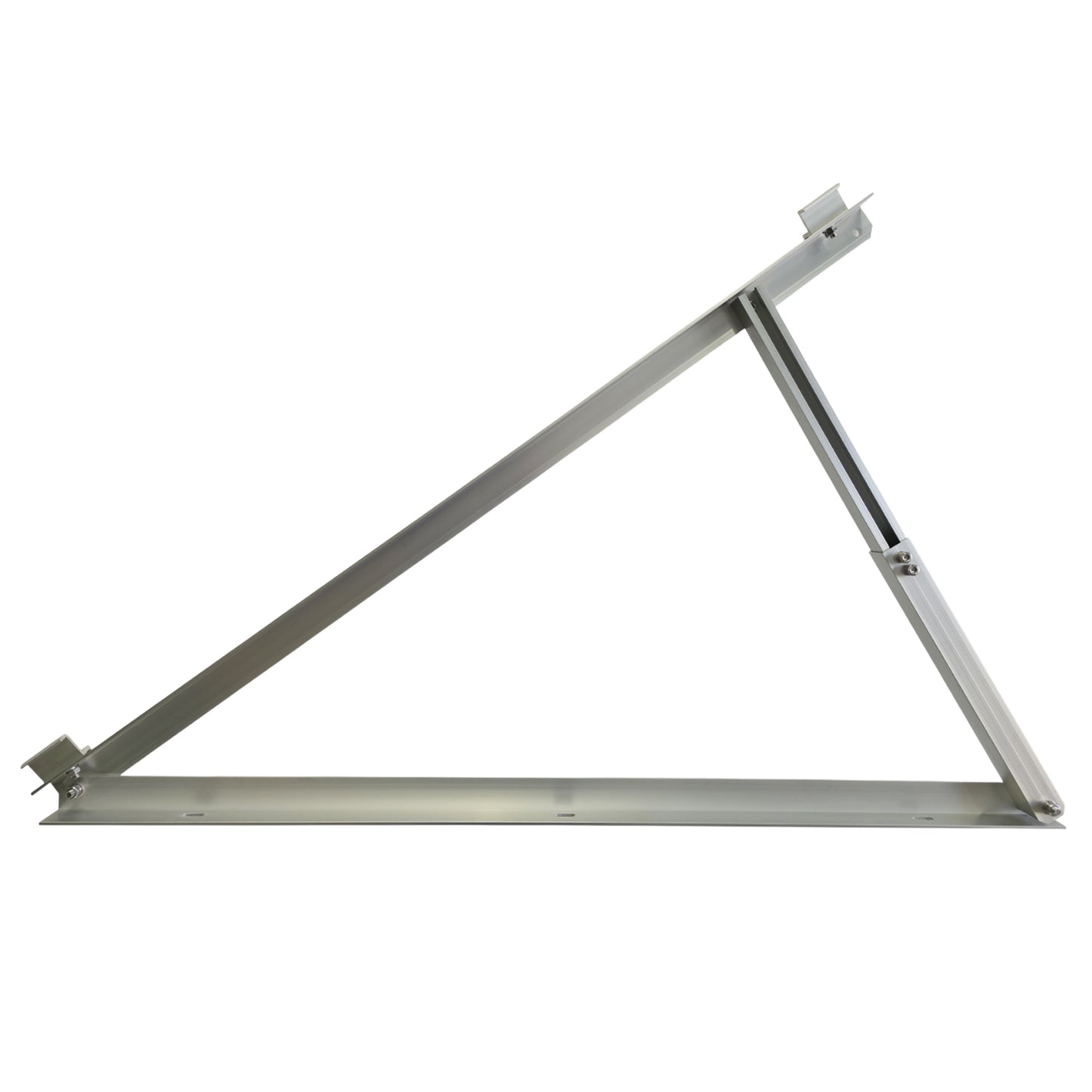

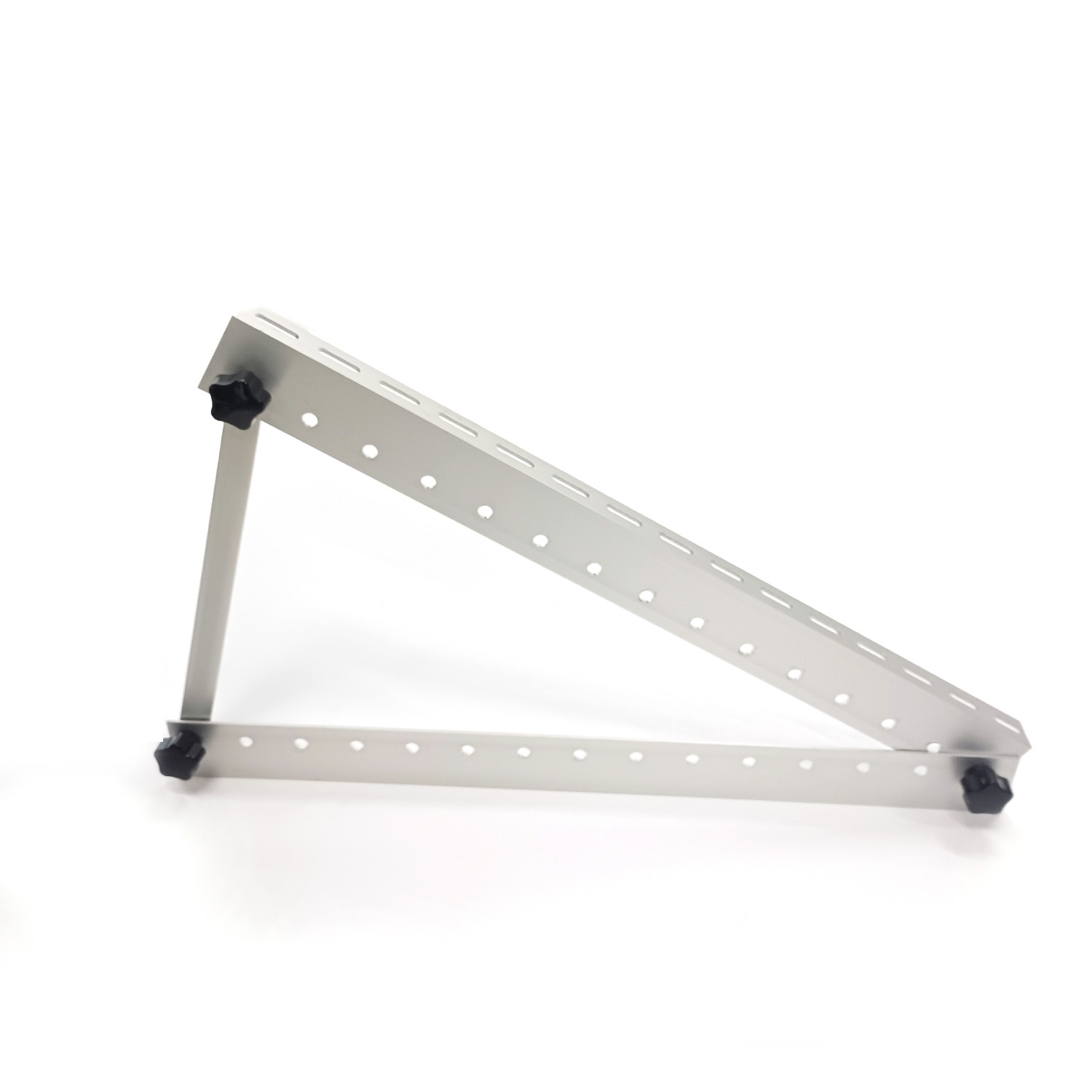

Anchor type, embedment, edge distances and fixing positions depend on the concrete substrate and the project design. Roof penetrations require an agreed waterproofing detail. Reference images show support bodies only; anchors and sealing components are not shown or implied to be included.
Material grades, dimensions, finishes and installation details are confirmed for the selected configuration. Structural or electrical drawing support can be agreed through our engineering services.
Reference component details
Frequently asked questions
Are anchors supplied with the frame?
Anchor selection and supply scope are confirmed in the quotation after the substrate and connection details are reviewed.
Does the triangle support make the roof waterproof?
The support body does not define waterproofing. The roof penetration and sealing detail require separate coordination.
Request a project quotation
Send the selection information above, required quantities and delivery destination. We will confirm the proposed configuration, documentation and supply scope before you place an order.
